Smart sensors & real time monitoring

- 7 smart sensors:

  :water flow sensor

  :water leak level detect sensors

  :temperature sensors

to enable real-time monitoring of filter effectiveness

and ensure optimal performance for a positive

refilling experience

Customizable sleep mode

to reduce energy consumption

10” LCD Screen

to provide instant user engagement by displaying the

number of bottles saved or customized visuals

Professional lab testing of water source

to ensure appropriate filters are used to cater for different filtering needs

International NSF certified filtration system

to ensure clean and safe drinking water quality

Temperature-responsive regulator and cooling algorithm

to ensure a refreshing, ambient water supply

Programmable auto-rinse

to safeguard risk of bacteria growth

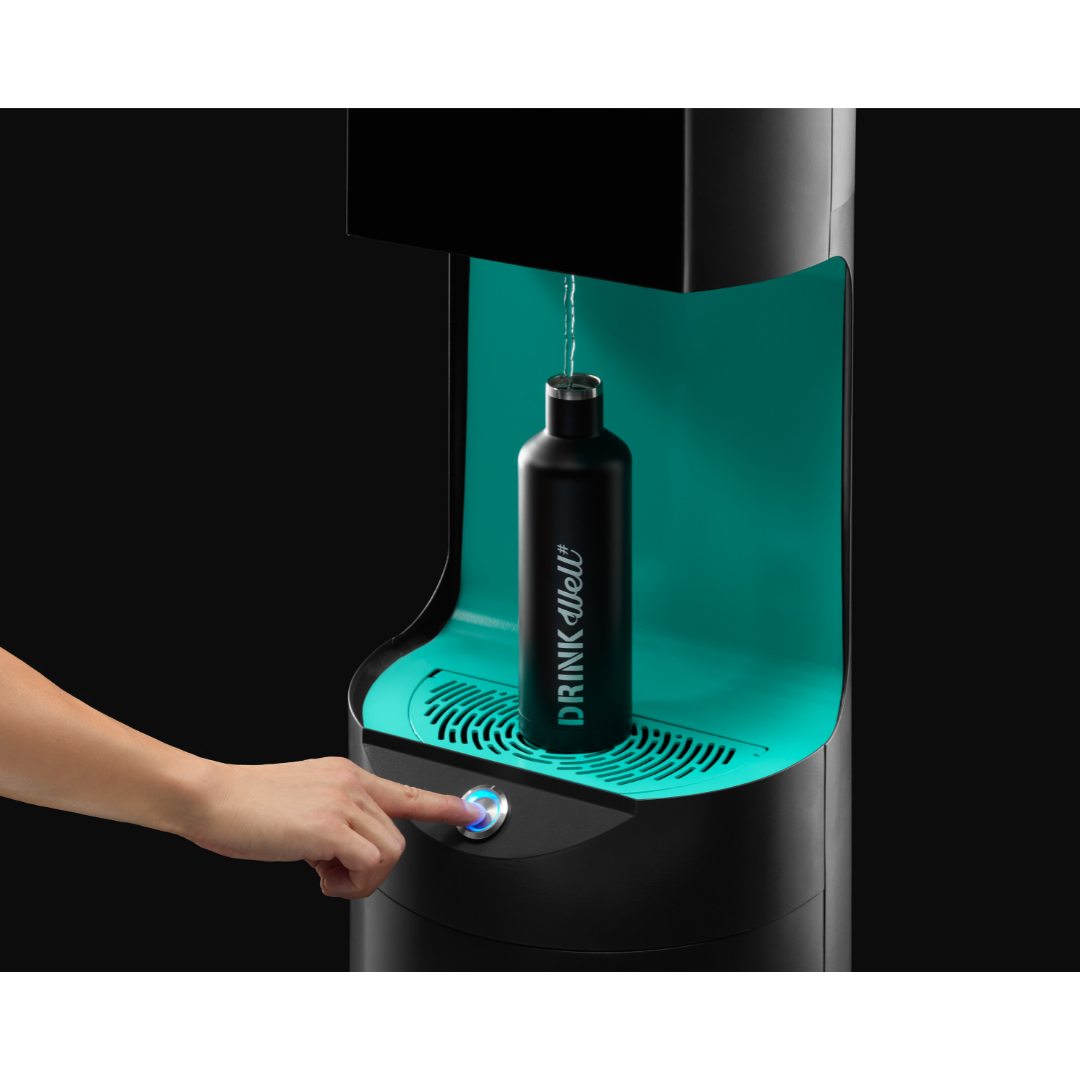

Hidden contactless nozzle

to prevent contact and safeguard hygiene

FOOT PEDAL

providing ser with a choice of hands-free dispense

Wheelchair and kids-friendly button control

SMART DATA REPORT

Bottles saved

Transaction details

Operating condition

User’s behavior

Dimension

- 160cm H x 32cm Dia.

- Dispensing space (semi-circular area): 30cm W x 15cm D x 30cm H

Weight

50kg

Capacity

- Water flow rate at 1.5-2.5L/min

- Cold water tank 1.9L

Certification

NSF #42 and #53 filter

Recommended operating

- Indoor

Environment

- Operating temp 10-40^oC

- Operating water pressure between 35psi to 65psi

- Humidity: <80%

Operating System

Android version

Display

10.1" WUXGA 16:10 Color TFT-LCD with LED blacklight

Pixel 1920 x 3(RGB) x 1200

Interface

Wireless internet connection capability : Wifi

Speaker

4ohm

3W/4W

Power Supply

220-240VAC 50Hz; 13A type G socket with fuse
