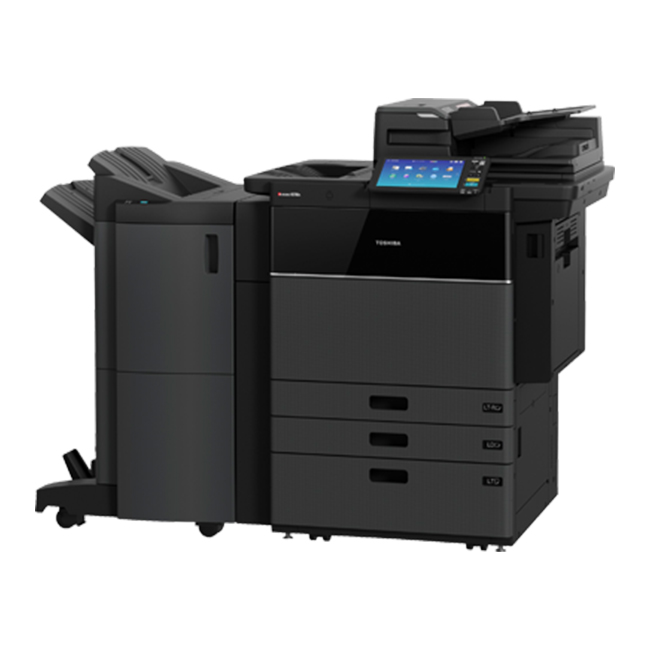

e-STUDIO5518A

PRODUCTIVITY

Print speed: up to 55 PPM

DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex

12" x 18" 140 lb index automatic duplexing from the drawers

13" x 19" 110 lb cover support through the bypass

Universal Print Driver

320GB Self-Encrypting Drive

Solutions Ready



IMAGE QUALITY

Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs

Up to 3600 x 1200 dpi print resolution

Automatic Image quality control function



OPERABILITY

New Toshiba developed 10.1 inch tablet-style touch color control panel for easier operation

Scan Preview

Dual-line Fax Option

One Touch Templates



SERVICEABILITY

Easy Replaceable Unit Design

Long Life consumables and duty cycles

MAIN SPECIFICATIONS

Copy Process

Indirect Electrostatic Photographic Method/OPC/Laser Printing/ Heat Roller Fusing

Display

10.1” Color WVGA Touch Screen Tilting Display

Copy Speed

55 PPM (LT)

First Copy Out

5.2

Warm-Up Time

Approx. 24 Seconds

Copy Resolution

2400 x 600 dpi

Stack Feed Bypass

3.9” x 5.8” to 13” x 19”, 12” x 47” Banner, Envelope

Multiple Copying

Up to 9,999 Copies

Paper Capacity

Standard 3,520 Sheets/Max. 6,020 Sheets (Tandem Drawer)

Original Feed

Standard 300-Sheet DSDF

Scan Speed & Weights

DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Index, Duplex: 9.3-110 lb Index

Max. Original Size

LD

Paper Feed Sizes

Drawers: 540 Sheets-ST-R to 12” x 18” Integral Tandem LCF 1,160 x 2 LT-Only Stack Feed Bypass: 120 Sheets-3.9” x 5.8” to 13” x 19”, 12” x 47” Banner 2,500-Sheet Ext. LCF LT-Only

Paper Weights

Tandem LCF 1,160 Sheets x 2-16 lb Bond-140 lb Index Plus 540 Sheets x 2-16 lb Bond-140 lb Index Stack Feed Bypass: 120 Sheets-16 lb Bond-110 lb Cover Opt. 2,500-Sheet Ext. LCF LT-Only -16 lb Bond-140 lb Index

Duplex

Standard Automatic Duplex Unit (16 lb Bond-140 lb Index)

Reproduction Ratio

25% to 400%

Max Duty Cycle

Max. 520K Month

Weight

Approx. 195kg

Approx. Dimensions

955mm (W) x 698mm (D) x 1,227mm (H)

Toner Yield

106,600 @ 5%

Power Source

120 Volts, 50/60 Hz, 16 Amps

Power Consumption

Max. 2.0kW (220 - 240V)

Super Sleep: 0.7W

CPU

Intel Atom™ 1.33 GHz (Dual-Core)

Memory

4GB

Hard Disk Drive

320 GB Toshiba Secure HDD



E-BRIDGE NEXT PRINT SPECIFICATIONS

PDL

PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG

Print Speed

Monochrome: 65 PPM (LT)

Print Resolution

600 x 600 dpi, 2,400 x 600 dpi (With Smoothing), 1,200 x 1,200 dpi (2-bit) or 3,600 x 1,200 dpi (With Smoothing) PS Only

Operating Systems

Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10, 10.11), Unix®, Linux®

Network Protocols

TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments

Printing Protocols

SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalk™, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP

Print Drivers

Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64- bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10, 10.11

Interface

RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed) Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth

Wireless Device

AirPrint™, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play)

Device Management

TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software)

Account Control

Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function

Accessibility Features

Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts

Security Features

User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp *Compliant with IEEE2600.1 in High Security Mode.

Environmental Stds

Energy Star (V2.0), EPEAT Gold, RoHS

Certification

WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP



SCAN SPECIFICATIONS

Scan Speed

DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color)

Scan Modes

Standard: Full Color, Auto Color, Monochrome, Grayscale

Scan Resolution

600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi

File Formats

Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.)

Image Compression

Color/Grayscale: JPEG (High, Middle, Low)



FAX SPECIFICATIONS

Compatibility

Super G3

Data Compression

MH/MR/MMR/JBIG

Transmission Speed

Approx. 3 Seconds Per Page

Fax Modem Speed

Up to 33.6 Kbps

Memory Transmission

100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job

Scan Speed

0.7 Seconds Per Page, Maximum 73 IPM



E-FILING SPECIFICATIONS

Operation Method

Color Touch Screen Control Panel or Client PC

Number of Boxes

1 Public Box; 200 Private User Boxes

Capacity of Boxes

100 Folders Per Box, 400 Documents Per Folder/Box, 200 Pages Per Document
